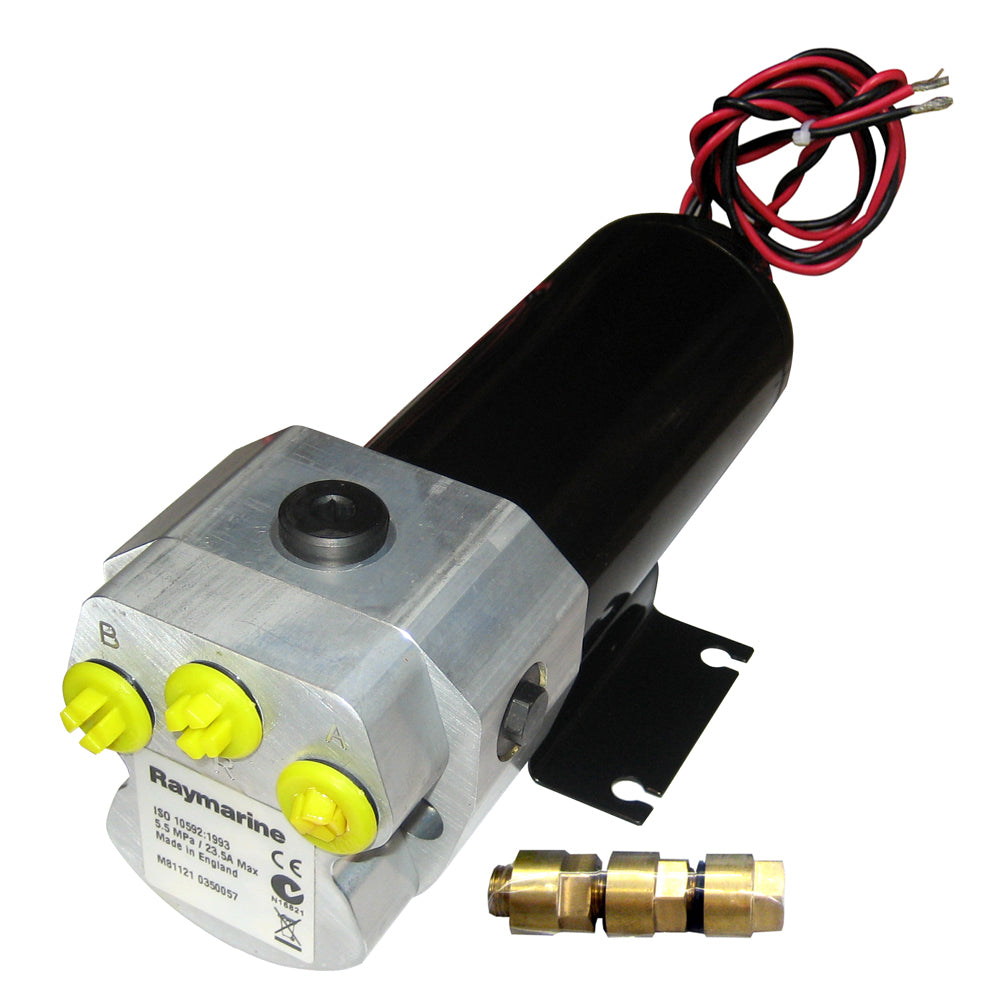

Raymarine Type 1 Pump 12V

Raymarine Type 1 Pump 12V

Type 1 Pump 12volt Reversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams. The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each corepack Corepack Used S1 or S1G Ram Capacity 4.9in - 10.5in (80CC-172CC) Maximum Stall Pressure at 12V 750psi (50bar) (no load) 67in/min (1000cc/min) Corepack Used S2 or S2G Ram Capacit
